Honjo Fork Crown Eyebolt Set (Daruma)

$9.00 – $12.00

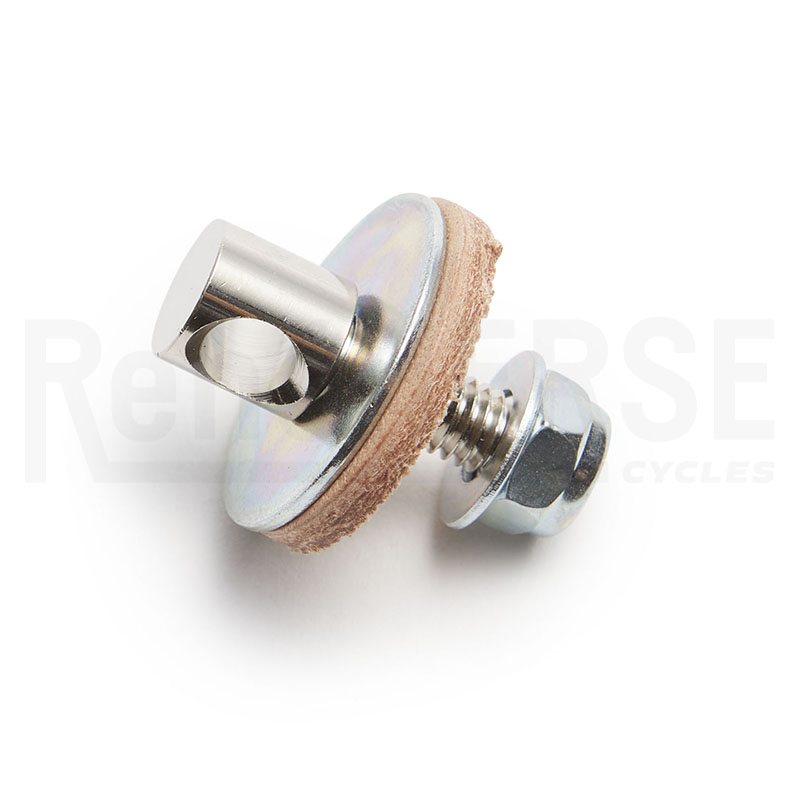

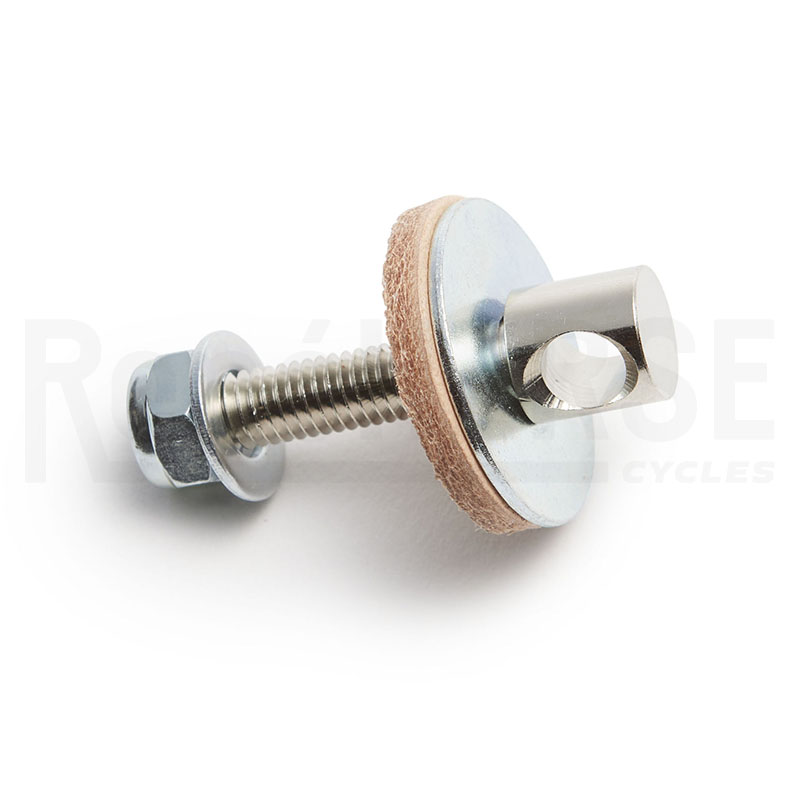

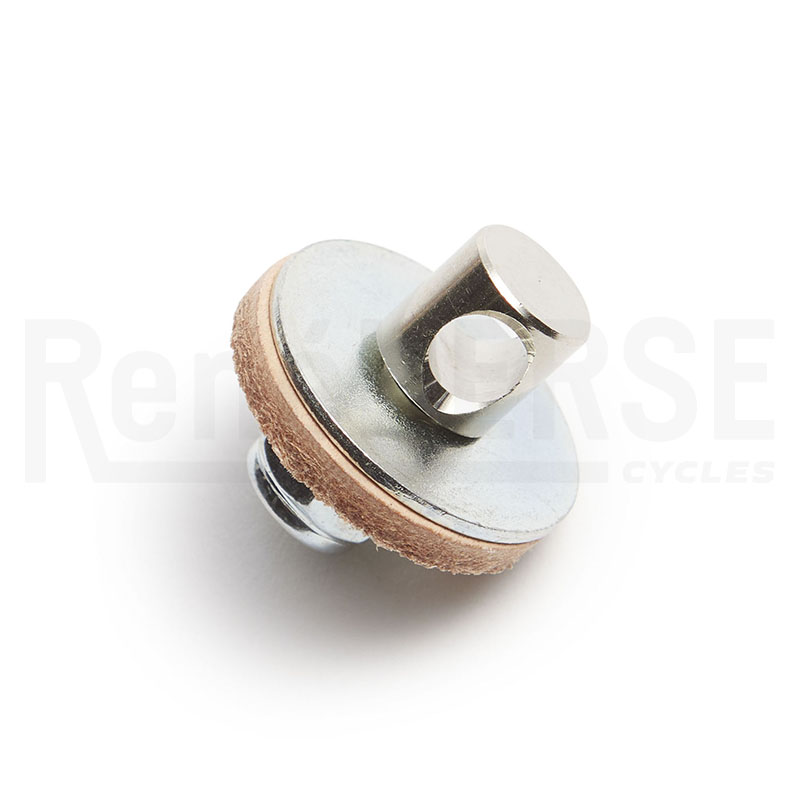

Eyebolt (Daruma) for attaching the fender to the fork crown. The eyebolt goes over the brake bolt/rack bolt. It extends downward to provide an attachment point for the fender. Package contains 1 set of eyebolt/nut/washers.

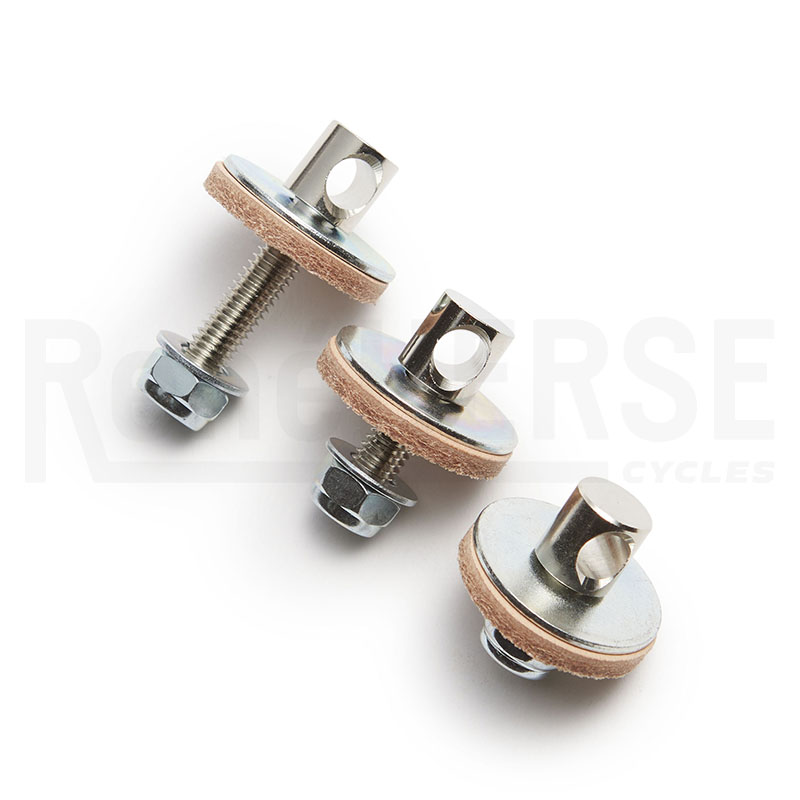

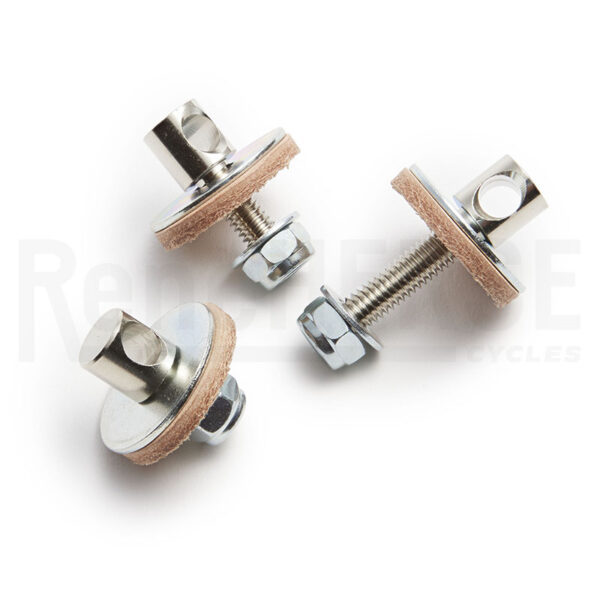

Available in three lengths:

  • 17 mm: for bikes with very short fork crowns
  • 22 mm: for most cyclotouring/randonneur bikes (also for bikes with Rene Herse fork crown)
  • 32 mm: extra-long, for unicrown forks; shorten to required length

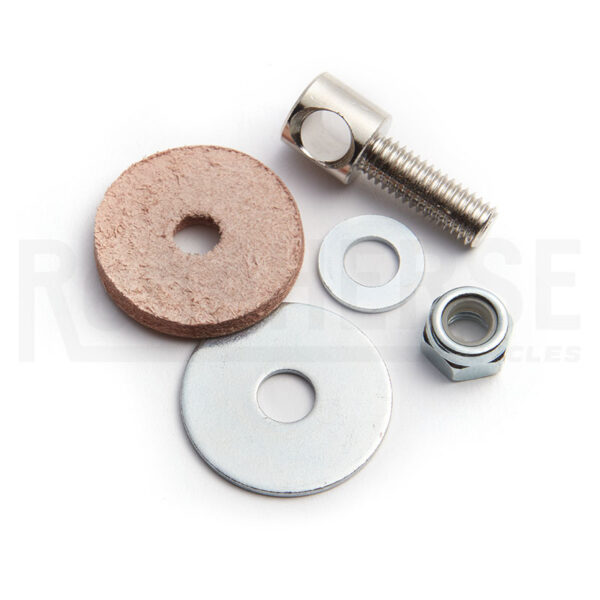

  • Includes:
    • 5 mm eyebolt (Daruma) with M6 threads
    • Large steel washer (goes against bottom of fork crown)
    • Large leather washer (cushions fender against fork crown)
    • Small washer (goes inside fender to spread the load)
    • M6 locknut
  • Length is measured from center of hole to end of threaded portion
  • Thickness of all washers and locknut: 10.8 mm
  • Made in Japan
